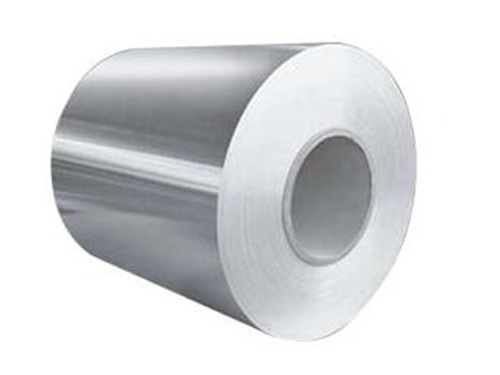

Aluminum Plate/Strip

Product Specification and Size :

Standard Specification: GB/T 3880, ASTM B209, EN485

Alloy	Temper
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Alloy Designation (For Reference)

Comparison of Alloy Designations for Aluminum Products

Alloy Series	Chinese Standard	American Standard	European Standard
1xxx Series	1050	-	-
	1050A	-	EN AW-1050A
	1060	1060	-
	1100	1100	-
2xxx Series	2024	2024	EN AW-2024
3xxx Series	3003	3003	EN AW-3003
	3004	3004	EN AW-3004
	3005	3005	EN AW-3005
	3105	3105	EN AW-3105
5xxx Series	5005	5005	EN AW-5005
	5052	5052	EN AW-5052
	5754	5754	EN AW-5754
	5083	5083	EN AW-5083
	5086	5086	EN AW-5086
	5182	-	EN AW-5182
	5049	-	EN AW-5049
	5251	-	EN AW-5251
6xxx Series	6061	6061	EN AW-6061
6xxx Series	6082	-	EN AW-6082
7xxx Series	7075	7075	EN AW-7075

Temper Designation (For Reference)

Temper	Definition
O	Annealed
H111	Annealed and slightly strain hardened (less than H11)
H12 H14 H16 H18	Strain Hardened, 1/4 Hard Strain Hardened, 1/2 Hard Strain Hardened, 3/4 Hard Strain Hardened, Full Hard
H22 H24 H26 H28	Strain Hardened and Partially Annealed, 1/4 Hard Strain Hardened and Partially Annealed, 1/2 Hard Strain Hardened and Partially Annealed, 3/4 Hard Strain Hardened and Partially Annealed, Full Hard
H32 H34 H36 H38	Strain Hardened and Stabilized, 1/4 Hard Strain Hardened and Stabilized, 1/2 Hard Strain Hardened and Stabilized, 3/4 Hard Strain Hardened and Stabilized, Full Hard
T3	Solution heat-treated, cold worked and naturally aged
T351	Solution heat-treated, cold worked, stress-relieved by stretching and naturally aged
T4	Solution heat-treated and naturally aged
T451	Solution heat-treated, stress-relieved by stretching and naturally aged
T6	Solution heat-treated and then artificially aged
T651	Solution heat-treated, stress-relieved by stretching and artificially aged

Available Size Range

Dimension	Range
Thickness	0.5 ~ 6.0 mm for sheet 6.0 ~ 120 mm for plate
Width	600 ~ 2,200 mm
Length	2,000 ~ 10,000 mm

- Standard Width and Length: 1000x2000 mm, 1250x2500 mm, 1500x3000 mm, 1219x2438 mm, 1524x3048 mm
- Surface Finish: Mill finish (unless otherwise specified), Color Coated, or Stucco Embossed
- Surface Protection: Paper interleaved, PE/PVC filming (if specified)
- Minimum Order Quantity: 3~5MT per size, total 20MT for one order

Application

Aluminum sheet or plate is used in various applications, including aerospace, military, transportation, etc. Aluminum sheet or plate is also used for tanks in many food industries, because some aluminum alloys become tougher at low temperatures.

Type	Application
Food Packaging	Beverage can end, can tap, cap stock, etc.
Construction	Curtain walls, cladding, ceiling, heat insulation and venetian blind block, etc.
Transportation	Automobile parts, bus bodies, aviation and shipbuilding and air cargo containers, etc.
Electronic Appliance	Electrical appliances, telecommunication equipment, PC board drilling guide sheets, lighting and heat radiating materials, etc.
Consumer Goods	Parasols and umbrellas, cooking utensils, sports equipment, etc.
Other	Military, color coated aluminum sheet

Chemical Composition (For Reference)

Chemical Composition conforms to Chinese, American and European standard specification

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others: Each	Others: Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1050A	0.25	0.40	0.05	0.05	0.05	-	0.07	0.05	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1100	0.95 Si + Fe		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	remainder
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	remainder
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	remainder
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	remainder
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	remainder
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	remainder
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	remainder
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	remainder
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	remainder
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	remainder
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	remainder
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	remainder
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	remainder
